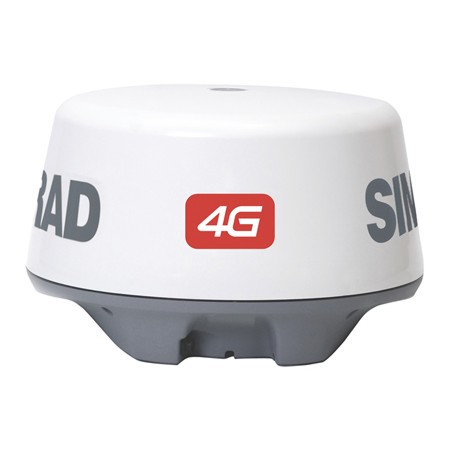

Simrad 4g Broadband Radar Suits Nse Series (20m)
Simrad 4g Broadband Radar Suits Nse Series (20m)
£1,562.94
(£1,875.53 Inc VAT)

£1,416.63
(£1,699.96 Inc VAT)

Cactus Fishing
Manufacturers

Raymarine Quantum Q24C Radome With 15M Power Cable & 15M Data Cable
[ZRAYT70266]

Manufacturers Part Number: T70266

£1,349.97
(£1,619.96 Inc VAT)

£1,249.96
(£1,499.95 Inc VAT)

Standard UK delivery is currently
7 - 10 working days
on this product.

Seen it for less?  Click here and we'll match the price or better it!

Tell a Friend

Notifications



Write Review
Call now for an instant price match

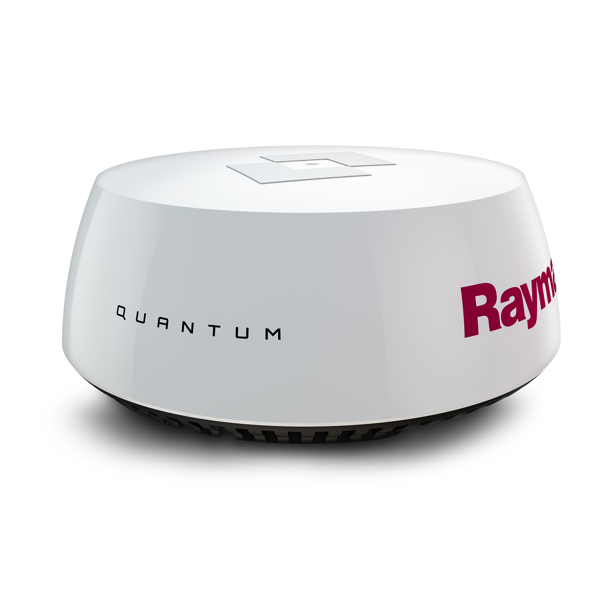

Raymarine Quantum Q24C Radome With 15M Power Cable & 15M Data Cable

Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.

Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Superior Radar Imaging

FLIR’s exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality

CHIRP Pulse Compression

  • Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
  • CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges

Small Target Detection

Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

Immediate Awareness

Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.

Simplified Installation

  • Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD
  • Quantum’s small diameter power cable is easy to route through tight spaces
  • Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables

Energy Efficient and Lightweight Design

  • Weighs 50% less than traditional magnetron radars
  • Safe Emissions thanks to Quantum’s low power solid state radar transmitter
  • Very low power consumption (17 Watts transmit and 7 watts standby)
  • Extended vessel battery life when under sail

Specifications:

Input Voltage 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
Networking Wi-Fi or wired Ethernet (RayNet)
Antenna Type Patch Array
Power Consumption Transmit mode 17W; standby mode 7W; sleep mode 2W
Range Scales From 1/16 to 24 nautical miles
Transmit Frequency 9354 to 9446 MHz
Peak Power Output 20W
Duplexer Circulator
Pulse Widths (3 dB) 40 ns to 14.7 μs
CHIRP Lengths 400 ns to 20 μs
CHIRP Bandwidth Up to 32 MHz
IF Bandwidth 26 MHz
Noise Less than 4 dB
Max. Range Scale from 1/16 to 24 nautical miles
Beamwidth (nominal) 4.9º horizontal and 20º vertical
Polarisation Horizontal
Waterproofing IPX6
Weight 5.6 kg (12.3 lb)
